| Lifting Capacity |
600 lb |
| Standard Lift Height |
53" |
| Maximum Lift Height Upgrade |
171" |
| Portable |
No |
| Arrives Assembled |
No |
| Drive System |
53" - 125" Acme Screw Drive, 149" - 171" Ball Screw Drive |
| Optional Drive Systems |
None Available |
| Battery Powered Option |
Yes |
| Constant Pressure Platform Control |
Yes |
| Emergency Stop Platform Control |
Included |
| Alarm Button |
Optional Audible Alarm |
| Keyed Platform Control |
Optional |
| Call-Send Controls |
Optional Non-Keyed & Keyed Call-Send |
| Platform Type |
Solid with Non-Skid Coating |
| Platform Size |
36" x 48" Platform (34" Usable Width) |
| Optional Platform Sizes |
36" x 54", 36" x 60", 42" x 54" (40" Usable Width) |
| Platform Configuration |
Straight-Thru Access |
| Optional Platform Configurations |
Same Side Entry-Exit, Adjacent Access |
| Upper Landing Gate |
Optional |
| Upper Access Ramp |
None Available |
| Lower Access Ramp |
Automatic Folding, Optional Fixed |
| Grab Rail |
Included |
| Guard Panel |
36", Optional 42" |
| Maximum Stops |
3 |
| Lift Speed (FPM) |
10 |
|
|
Regular Price: $5,289.00
plus shipping
Free Shipping
|
|
|
|
|

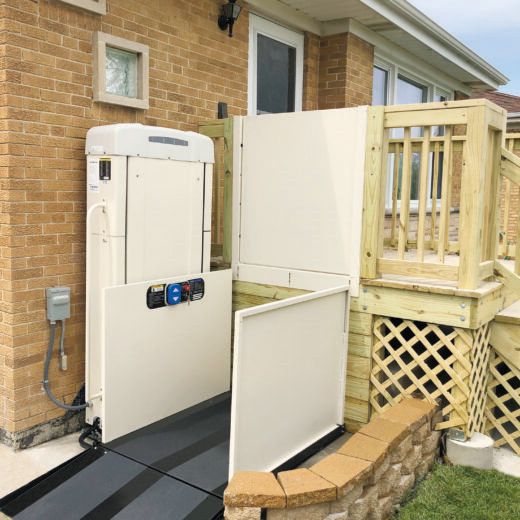

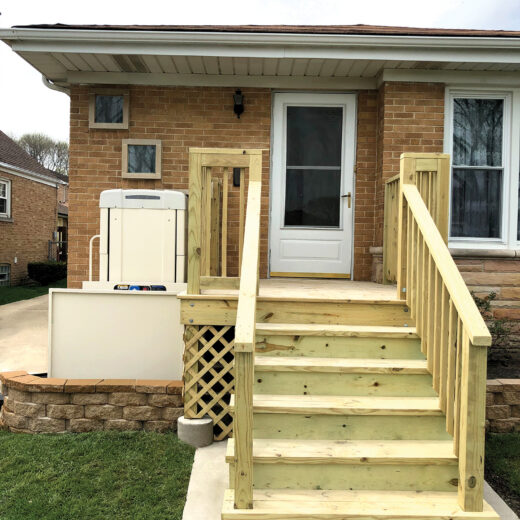

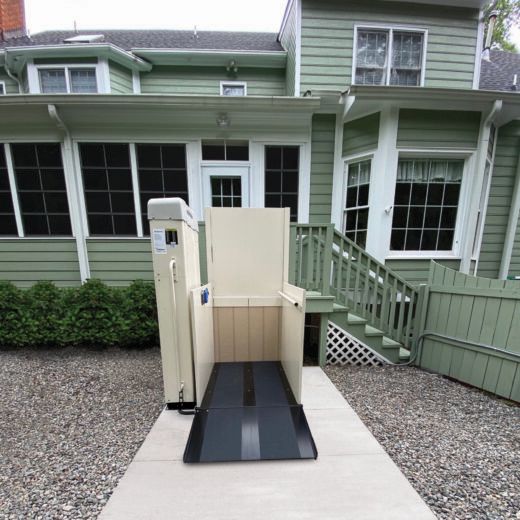

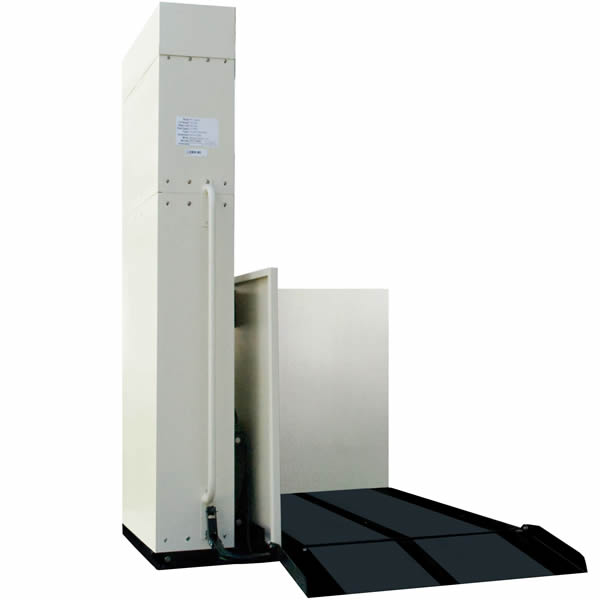

When just a little less will do, the Hercules II Residential Vertical Platform Lift saves you money while still offering a tremendous range of features. The Hercules II Residential has a solid platform with a 600 pound lift capacity. It's available with straight-through access. Other features include a grab rail, an automatic folding ramp, a screw drive, and weatherproof switches and controls. ASME 18.1 (Section 5) and CSA B44.1 - ASME 17.5 compliant.
|
