| Lifting Capacity |
550 lb |
| Standard Lift Height |
52" |
| Maximum Lift Height |
52" |
| Portable |
Yes |
| Arrives Assembled |
No |
| Drive System |
Direct Worm-Gear & Screw-Nut |
| Optional Drive Systems |
None |
| Battery Powered Option |
Yes |
| Constant Pressure Platform Control |
Yes |
| Emergency Stop Platform Control |
Standard |
| Alarm Button |
None Available |
| Keyed Platform Control |
Standard |
| Call-Send Controls |
None Available |
| Optional Call-Send Controls |
None Available |
| Platform Type |
Expanded Metal |
| Platform Size |
34" x 54" |
| Optional Platform Sizes |
None Available |
| Platform Configuration |
Straight-Thru Access |
| Optional Platform Configurations |
None Available |
| Upper Landing Gate |
None Available |
| Upper Access Ramp |
Automatic Folding |
| Lower Access Ramp |
Automatic Folding |
| Grab Rail |
Optional |
| Guard Panel |
None Available |
| Maximum Stops |
2 |
|
|
Regular Price: $7,500.00
plus shipping
Free Shipping
|
|
|
|
|

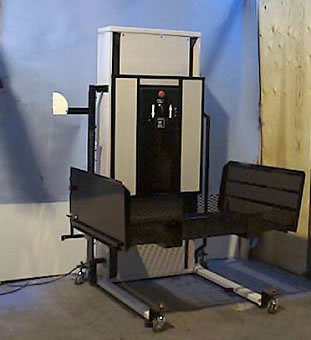

The Atlas Vertical Platform Lift - Portable is a great solution for those lifting applications that don't require permanent installation or where the application requires the ability to store the lift when not in use. The Atlas Portable is safe, comfortable, and convenient. It is designed to meet U.S. and Canadian safety standards.
*For commercial applications please consult your local elevator branch for approval before beginning construction. Code requirements can very greatly from region to region.
|
