| Lifting Capacity |
550 lb |
| Standard Lift Height |
72" |
| Maximum Lift Height Upgrade |
144" |
| Portable |
No |
| Arrives Assembled |
No |
| Drive System |
Direct Worm-Gear & Screw-Nut |
| Optional Drive Systems |
None Available |
| Battery Powered Option |
Yes |
| Constant Pressure Platform Control |
Yes |
| Emergency Stop Platform Control |
Included |
| Alarm Button |
None Available |
| Keyed Platform Control |
Included |
| Call-Send Controls |
Optional Call-Send, Call-Send with Key, Toggle, Toggle with Key |
| Platform Type |
Expanded Metal |
| Platform Size |
34" x 54" |
| Optional Platform Sizes |
40" x 54" |
| Platform Configuration |
Straight-Thru Access |
| Optional Platform Configurations |
Adjacent Access |
| Upper Landing Gate |
Optional |
| Upper Access Ramp |
None Available |
| Lower Access Ramp |
Automatic Folding |
| Grab Rail |
Included |
| Guard Panel |
Optional |
| Maximum Stops |
3 |
|
|
Regular Price: $6,500.00
plus shipping
Free Shipping
|
|
|
|
|

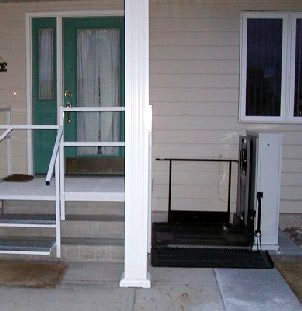

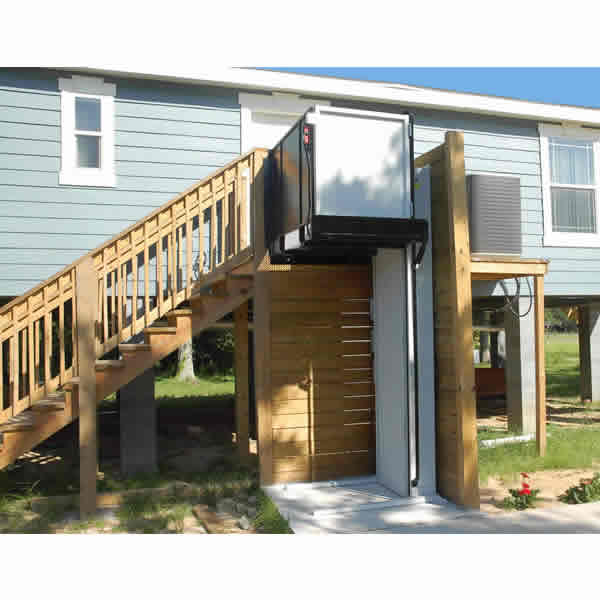

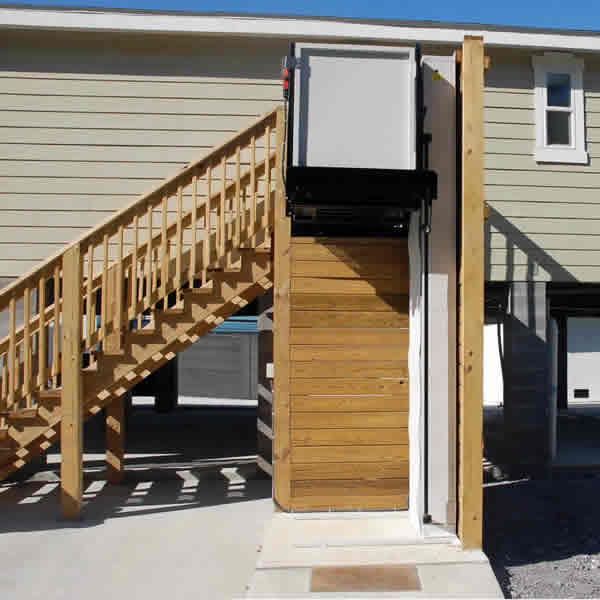

The AmeriGlide Atlas Vertical Platform Lift - Residential is used primarily for lifting persons with physical disabilities from the ground up to the main floor of their home. It is designed to meet U.S. and Canadian safety standards and can easily be adapted to various situations. Expanded metal platform, automatic folding entry ramp, and keyed platform controls with emergency stop come standard.
|
