QuickServe II Dumbwaiter

Product Review
The Company warrants to the original purchaser of a QuickServe II Dumbwaiter, manufactured by the Company, to be free from defects in material or workmanship during the Warranty Period defined as follows:
2 years for batteries
5 years for all other component parts

Labor reimbursement is not covered by this warranty

If defects were the result of improper installation, non-normal use, freight damage, or other terms failing to meet the conditions of this Limited Warranty as described herein, the defects would not be covered.
Max Travel - Standard10'
Max Travel - Optional30'
Car Size - Standard20Wx20Dx30H or 24Wx24Dx30H
Car Size - Optional30Wx30Dx36H
Stops - Standard2
Stops - Optional3 or 4
Weight Capacity - Standard200
Weight Capacity - Optional275
Stainless Steel Panel OptionYes
Hardwood Door OptionYes
Straight Through Car OptionYes
90° Car OptionYes
Regular Price
plus shipping
Select Options
Add To Cart
Plug and play simple installation makes installation easy and can be done in half the time as it takes to install other dumbwaiters. The QuickServe II uses a rack and pinion drive so there are no cables, chains, or drums to install. The entire motor and electronics assembly comes pre-assembled on the lower section of the track. Major features include:
  • Rack and pinion drive
  • No slack cable lock-ups
  • Battery operated
  • Fast and easy installation – plug and play
  • Aluminum rail instead of steel T-rail
  • No separate machine room required
  • No remote mounted controller
  • On board diagnostic troubleshooting LED light
  • 20" Wide x 20" Deep x 30" High – 200 lbs capacity
  • 24" Wide x 24" Deep x 30" High – 200 lbs capacity
  • 30" Wide x 30" Deep x 36" High – 275 lbs capacity
  • Optional stainless steel car
  • Warranty 5 years on motor and gear, and 2 years on all other parts
click to enlarge picture

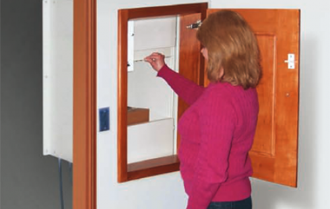

  • QuickServe II Dumbwaiter

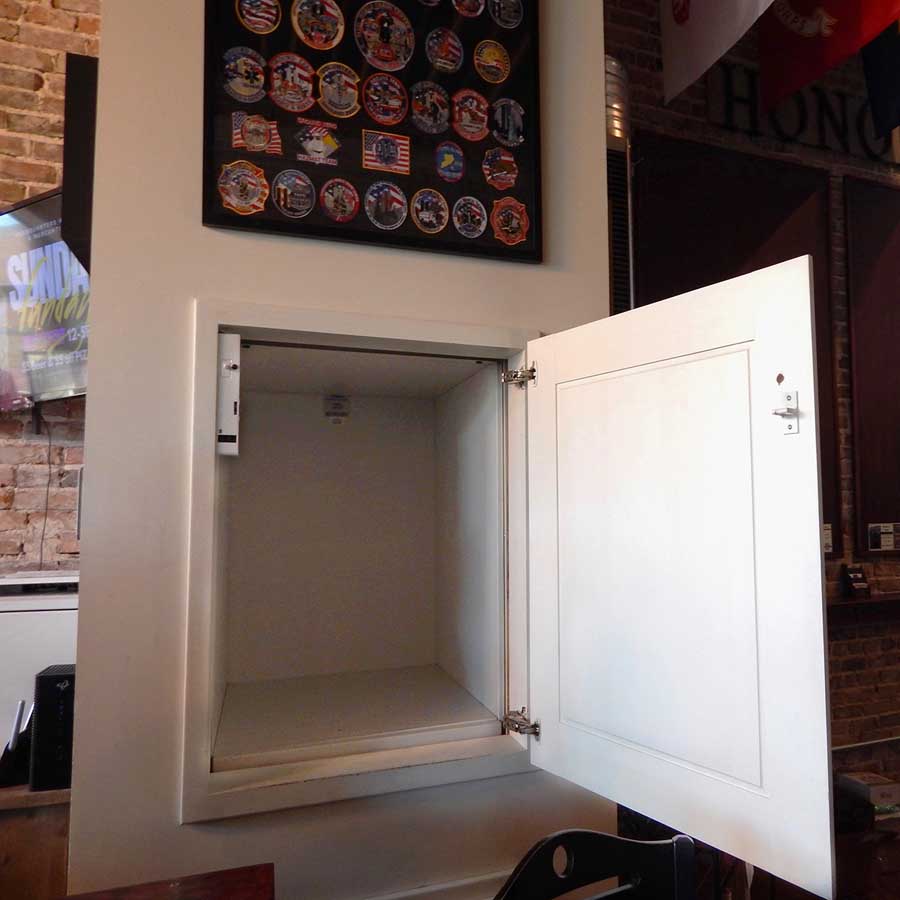

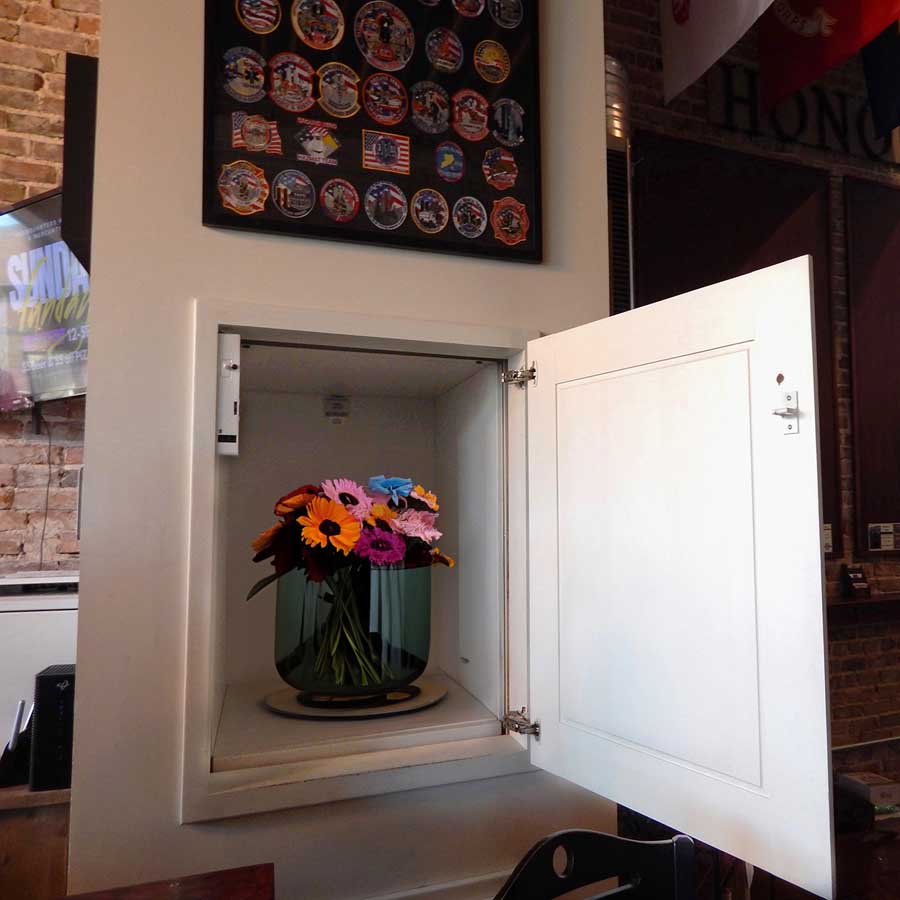

  • Inside a Shop

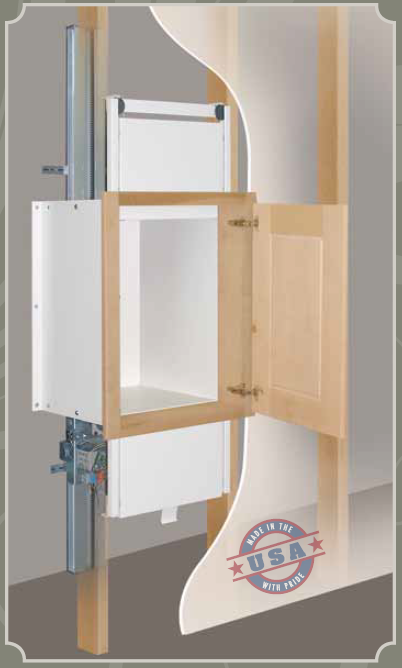

  • Cutaway

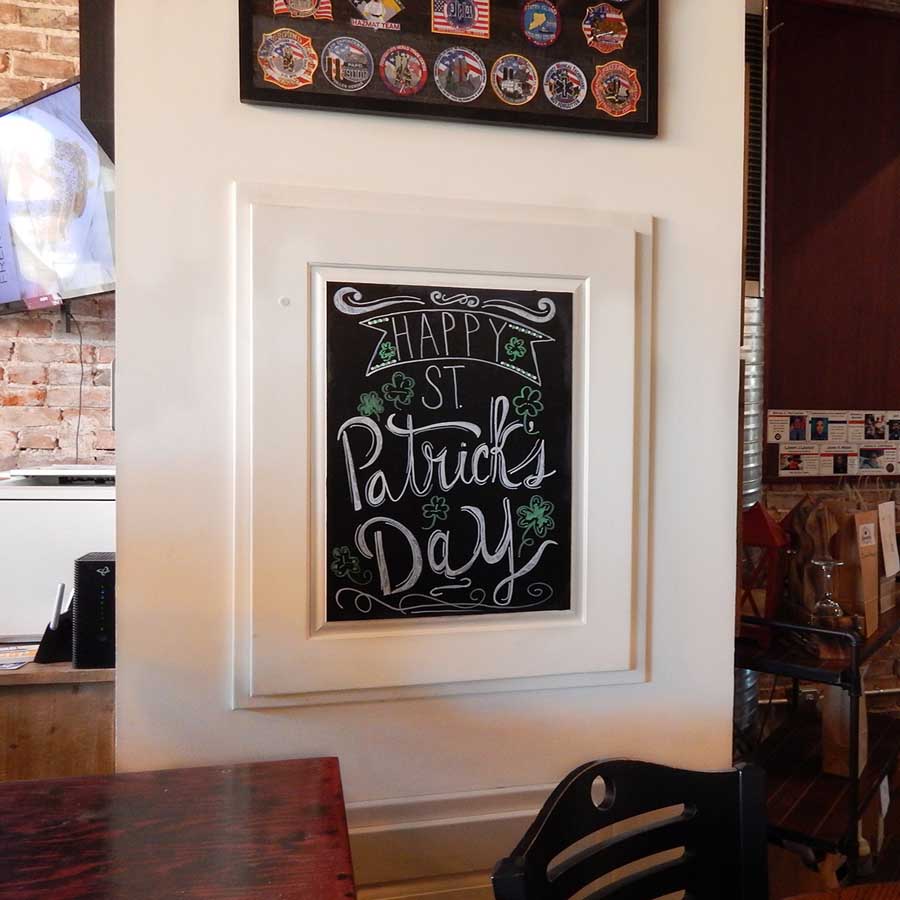

  • Decorated Door

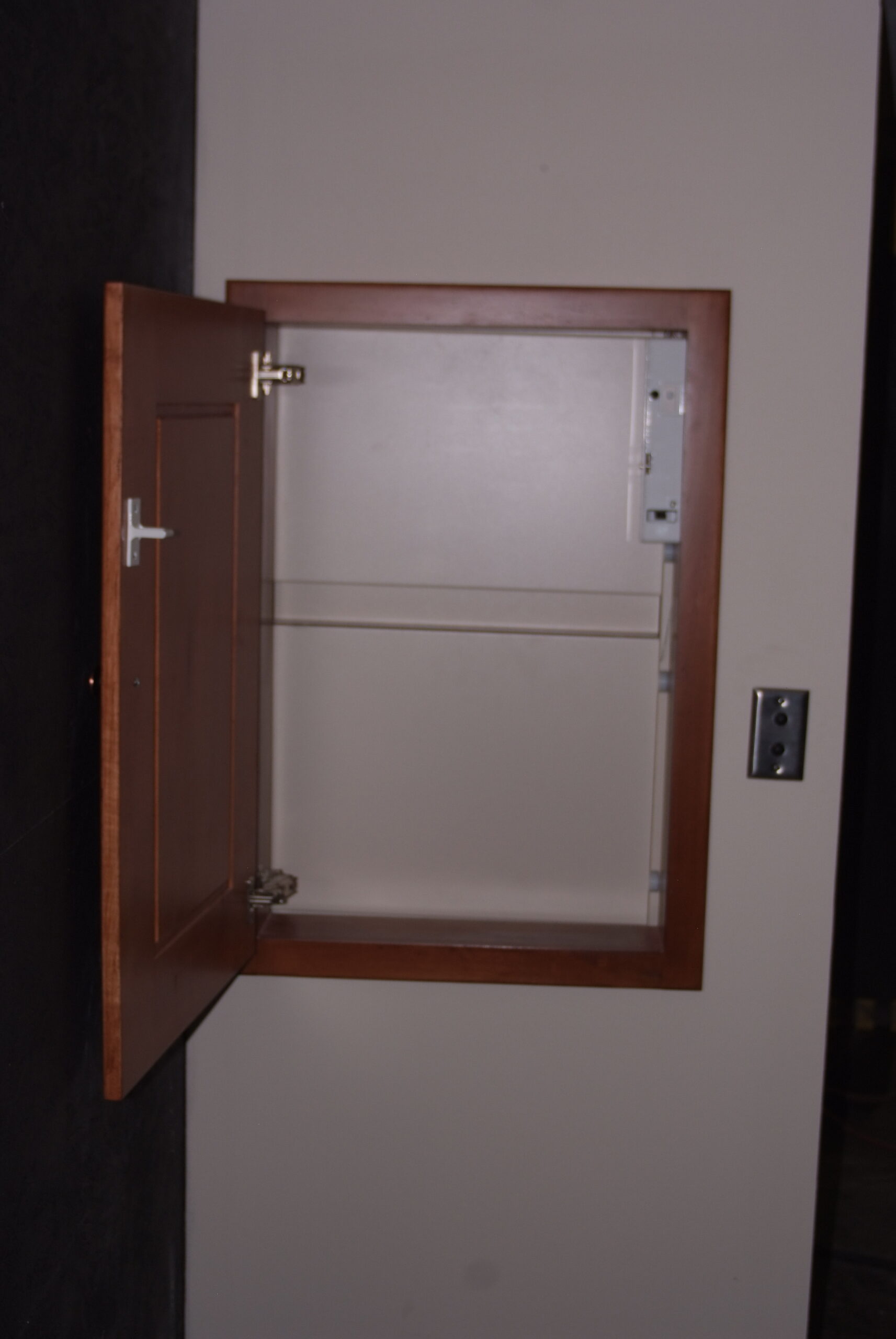

  • Shelf Inside
  • Dimensions
