Stratos 750 AC Commercial

Product Review
(0)
(92.5)
Write a review!
Lifting Capacity750 lb
Standard Lift Height53"
Maximum Lift Height Upgrade171"
Arrives AssembledYes
Drive System1" Diameter ACME Screw
Optional Drive SystemsNone Available
Battery Powered OptionYes
Constant Pressure Platform ControlYes
Emergency Stop Platform ControlLighted Emergency Stop with Alarm
Alarm ButtonLighted Emergency Stop with Alarm
Keyed Platform ControlOptional
Call-Send ControlsOne Per Stop Included
Optional Call-Send ControlsKeyed and/or Wireless
Platform TypeSolid with Non-Skid Coating
Platform Size36" x 54" (34" Usable Width)
Optional Platform Sizes36" x 60" (34" Usable), 42"x 54" (34" Usable), 42" x 60" (40" Usable)
Platform ConfigurationStraight-Thru Access
Optional Platform ConfigurationsSame Side Entry-Exit, 90 Degree Adjacent Access
Upper Landing GateOptional
Upper Access RampNone Available
Lower Access Ramp36" Fixed or Auto-Folding Standard, Optional 42" Fixed or Auto-Folding
Grab RailIncluded
Guard Panel42"
Maximum Stops3
Lift Speed (FPM)10
Other OptionsFire-Rated Doors, Automatic Door Openers
Regular Price:  $7,615.00
Price: $5,470.00
plus shipping
Select Options
spacer
Add To Cart
spacer
Want a coupon for this product?
The Stratos VPL represents a new generation and evolution in VPL's. New technologies introduced in the Stratos VPL make this VPL series more reliable, easier to use, easier to service, easier to troubleshoot, and the premiere market choice for platform lift solutions.

Innovation is at the heart of this next generation Vertical Platform Lift. The Stratos VPL is an outstanding choice for vertical lifting solutions in the home or in light commercial settings where an elevator is impractical or unnecessary.

Features:
  • Guardian System: 4 bright, high-contrast LED status lights give continual performance feedback from the lift's control board. Monitoring almost every critical system, Guardian can provide immediate feedback and guidance.
  • SteadyDrive: Ensures a smooth, quiet and stable lift.
  • ReadyUPS System: True battery back-up option that can deliver at least 5-cycles in the event of power loss.
  • Certifications: ETL listed, CSA B44.1/ASME A17.5, Safety standard ASME A18.1, Rated commercial and residential.
click to enlarge picture

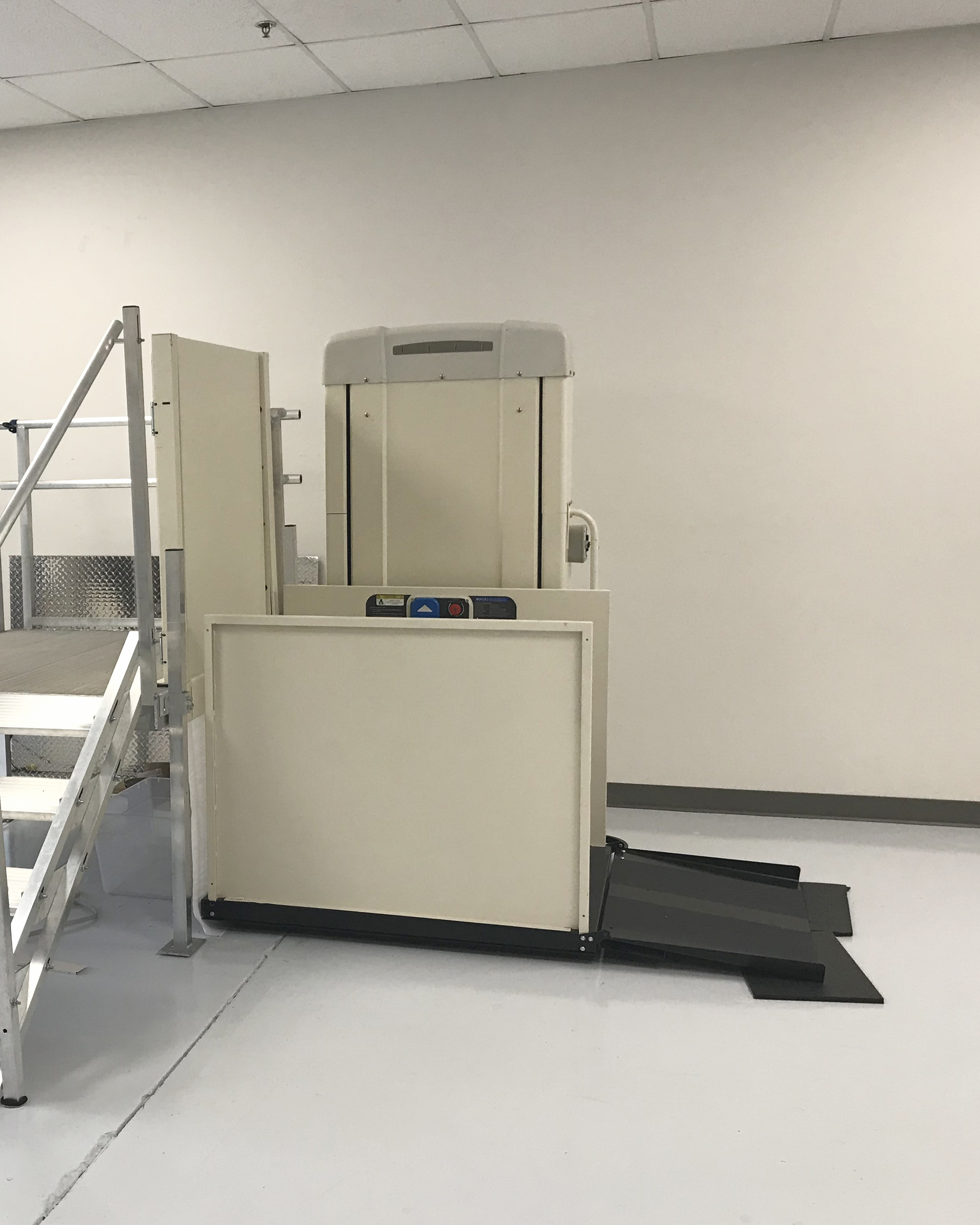

  • Stratos 750 AC Commercial

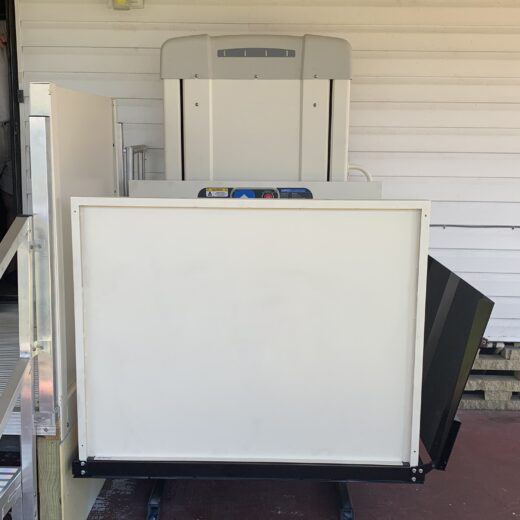

  • New product image
  • New product image
